    ANT UC-H Elevator Cabin Floor Load Cell 3000kg Elevator Compression Transducer

    Ask Lasest Price
    Brand Name : SUMT, ANT
    Model Number : UC-H
    Certification : CE
    Price : USD10-30/set
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 5000-10000pcs/month
    Delivery Time : 3-20 working days depending on the quantity
    • Product Details
    • Company Profile

    ANT UC-H Elevator Cabin Floor Load Cell 3000kg Elevator Compression Transducer

    ANT UC-H 3000kg alloy steel elevator car bottom load weighing sensor under lift cabin floor chassis

    Description:
    SUMMIT Elevator Cabin load cell sensors UC-H are supplied with their own integral rubber mounting arrangement, specifically designed for installation below the elevator & lift car. They easily mount under the cab and are extremely accurate, The UC-H load cell sensor are designed for use with new passenger lift up to 3000kg load, and this cabin compression over Load cell UH-H comes with Anti vibration rubber pad mounting & this provides Dampening effect

    Note: Under cab sensors UC-H series are not recommended for lift modernization or retrofit.

    .

    Features:

    1. Anodised aluminium construction
    2. Rated load 3000kg
    3. 4 wire cable
    4. Perfect for new installations
    5. Load cell for installation under elevator cabin.
    6. Mounted on a silent-block pad that avoids the transfer of vibrations .
    7. Connected to the unit control of the OMS series a
    8. Adjustable locking screw to adjust the unevenness of the bottom of the car during assembly

    Cabin load cell UC-H parameters:

    Model: Car floor load cell UC-H
    Rated Load3000KGCreep Error+/-0.02% F.S
    Sensitivity2.0+-0.02%mv/vInput Resistance760+/-10 ohm
    Total error+/-0.5% F.SOutput Resistance700+/-2 ohm
    Excitation5-12V DCSafe Overload150% F.S.
    Insulation Impedance≥5000 OhmUltimate Overload200% F.S.
    Protection classIP68Construction materialAlloy Steel
    Operation temperature-30 to 70 degree CelsiusCable length8m

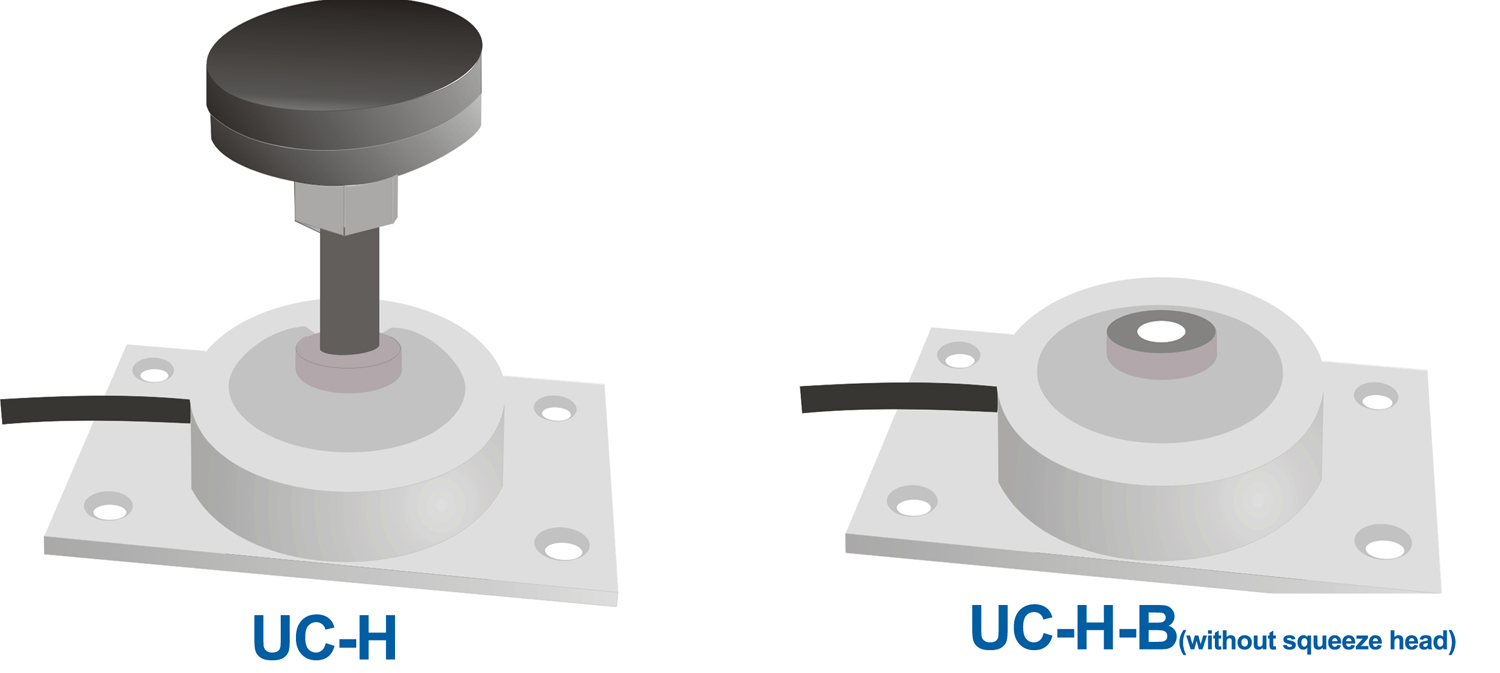

    Elevator cabin load cell UC-HSize:

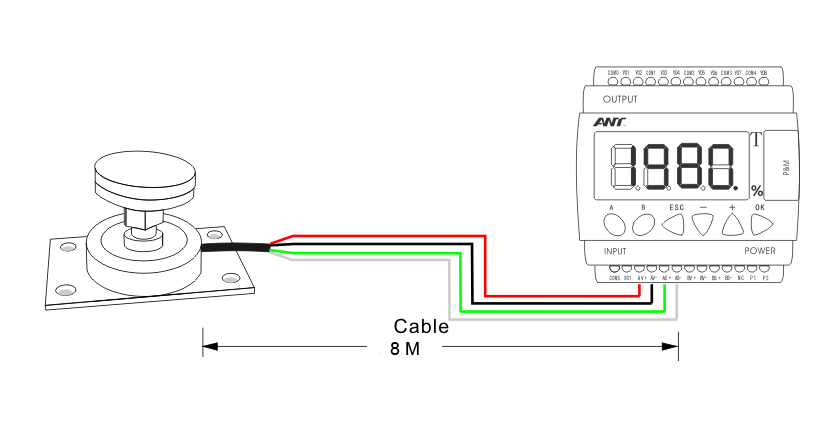

    Installation and wiring diagram:

    Installation postion: under cabin (in center)

    For traction elevator lifts, We SUMMIT provide a wide range of elevator load weighing device and strain load cells and it can suit different installation position requests, and usually there are 4 ways to mount it:

    Broad selections, We offer you flexible, modular solutions for both requirements, and wide experience with modernization projects.
    1.Under elevator cabin (cab load cells UC-AP, UC-H)
    2.Clamped on the wire rope (wire rope load cells RH-SM,RH-A100)
    3.Between the wire rope hitch plate such as RHP-E, RHP-F, RHP-G and so on. the customized load cells are available on requests(rope hitch compression load cells)
    4.Mounted on the elevator car frame to detect the beam deformation (tension link load cell, cross head load cell RHP-X)


    Your trustworthy partner-SUMMIT
    With more than 20 years experience in the elevator and lifting industry and with our highly qualified and dedicated staffs, we can provide you the best possible sensor and weight measuring solutions in all types ofinstallations. SUMMIT ensures safety and quality at all steps of elevator and lifting. Long -standing expertise, all encompassing technology competencies, consulting and supported by qualified experts as a highly professional customer service--We trust SUMMIT is your trustworthy partner you can rely on.
