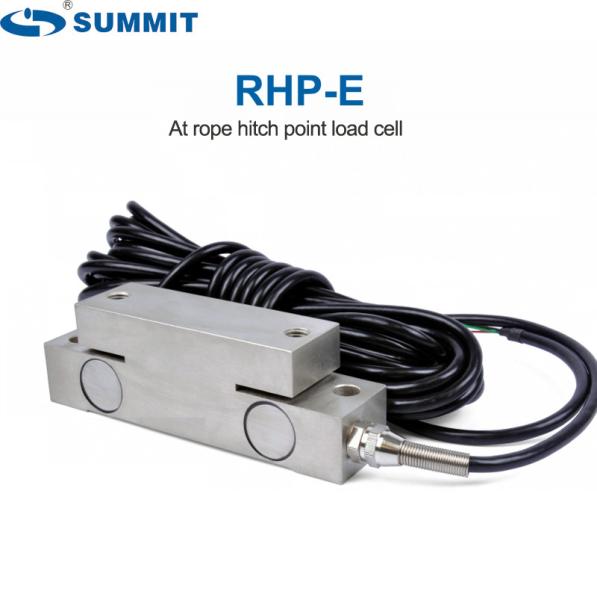

    SUMMIT ANT RHP-E Elevator Load Cell 3000kg 5000kg Lift Compression Load Cell

    Ask Lasest Price
    Brand Name : SUMT, ANT
    Model Number : RHP-E
    Certification : CE
    Price : USD35-60/set
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 5000-10000pcs/month
    Delivery Time : 3-20 working days depending on the quantity
    • Product Details
    • Company Profile

    SUMMIT ANT RHP-E Elevator Load Cell 3000kg 5000kg Lift Compression Load Cell

    SUMMIT ANT RHP-E Nominal load 3000kg 5000kg mounted under rope end hitch plate elevator lift compression load cell


    Description:
    The compression load sensor RHP-E is made of high nickel alloy steel & designed particularly to measure the elevator lift car loading whether the elevator car’s weight is overloaded or not, thereby to ensure the safe operation of the elevator ,and it is typically placed at the position of rope attachment and between the wire rope hitch plates and provide more accuracy measurement.


    Features:

    1. Load cell especially designed to work a compression.
    2. Made of alloy steel of high resistance with anti-corrosion treatment.
    3. Particularly installed under the wire rope hitch plate
    4. Connected to load control unit OMS series by SUMMIT
    Model:Elevator compression Load Cell RHP-E-3T
    Rated Load3000KGConstruction materialAlloy Steel
    Sensitivity2.0+-0.02%mv/vOperation temperature range-30 to 70 degree Celsius
    Total error+/-0.5% F.SInput Resistance760+/-10 ohm
    Excitation5-12V DCOutput Resistance700+/-2 ohm
    Max excitationDC15VSafe Overload150% F.S.
    Insulation Impedance≥5000 OhmUltimate Overload200% F.S.
    T C SPAN+/-0.02% F.S./10 degree CelsiusVoltage Creep Error+/-0.02% F.S
    Protection classIP67Cable length8m

    Compression load cell RHP-E Size:


    Installation and wiring diagram:

    Installation postion: under the wire rope hitch plate

    For traction elevator lifts, We SUMMIT provide a wide range of elevator load weighing device and strain load cells and it can suit different installation position requests, and usually there are 4 ways to mount it:

    Broad selections, We offer you flexible, modular solutions for both requirements, and wide experience with modernization projects.
    1.Under elevator cabin (cab load cells UC-AP, UC-H)
    2.Clamped on the wire rope (wire rope load cells RH-SM,RH-A100)
    3.Between the wire rope hitch plate such as RHP-E, RHP-F, RHP-G and so on. the customized load cells are available on requests(rope hitch compression load cells)
    4.Mounted on the elevator car frame to detect the beam deformation (tension link load cell, cross head load cell RHP-X)
