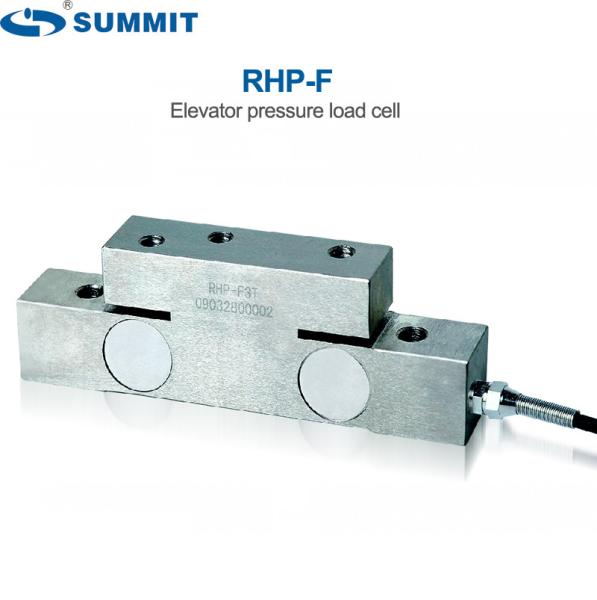

ANT accurate RHP-F rated load 1000g 3000kg elevator lift load weighing compression transducer mounting at rope attachments

Description:
The compression load sensor RHP-F is made of high nickel alloy steel & designed particularly to measure the elevator lift car loading whether the elevator car’s weight is overloaded or not, thereby to ensure the safe operation of the elevator ,and it is typically placed at the position of rope attachment and between the wire rope hitch plates and provide more accuracy measurement.

Features:

1. Load cell especially designed to work a compression.
2. Made of alloy steel of high resistance with anti-corrosion treatment.
3. Particularly installed under the wire rope hitch plate
4. Connected to load control unit OMS series by SUMMIT

Compression load cell RHP-E Size:

Installation and wiring diagram:

Installation postion: under the wire rope hitch plate

For traction elevator lifts, We SUMMIT provide a wide range of elevator load weighing device and strain load cells and it can suit different installation position requests, and usually there are 4 ways to mount it:

Broad selections, We offer you flexible, modular solutions for both requirements, and wide experience with modernization projects.
1.Under elevator cabin (cab load cells UC-AP, UC-H)
2.Clamped on the wire rope (wire rope load cells RH-SM,RH-A100)
3.Between the wire rope hitch plate such as RHP-E, RHP-F, RHP-G and so on. the customized load cells are available on requests(rope hitch compression load cells)
4.Mounted on the elevator car frame to detect the beam deformation (tension link load cell, cross head load cell RHP-X)

Your trustworthy partner-SUMMIT
With more than 20 years experience in the elevator and lifting industry and with our highly qualified and dedicated staffs, we can provide you the best possible sensor and weight measuring solutions in all types ofinstallations. SUMMIT ensures safety and quality at all steps of elevator and lifting. Long -standing expertise, all encompassing technology competencies, consulting and supported by qualified experts as a highly professional customer service--We trust SUMMIT is your trustworthy partner you can rely on.
